Linear Lighting
ZNF.X.S SERIES
ZNF.X.S Linear LED Fixtures
The ZNF.X Series linear LED luminaires consist of a transparent polycarbonate tube and aluminum housings. The electronic components are housed within a flame-proof enclosure. The seal between the tube and the housings is ensured by special components. Designed for fixed installation, the luminaires are available with standard and 3-hour emergency lighting options.
- Two different sizes
- 22W, 44W, and 66W power options
- 3-hour emergency kit version option.
- Cable input and output options for serial connection
EX MARKINGII 2G Ex db IIB T6 Gb
II 2D Ex tb IIIC T85°C Db
II 2D Ex tb IIIC T85°C Db
IP RATINGIP66 / IP67
REGIONZone 1–2 · Zone 21–22
MATERIALAluminum Housing, Polycarbonate Diffuser

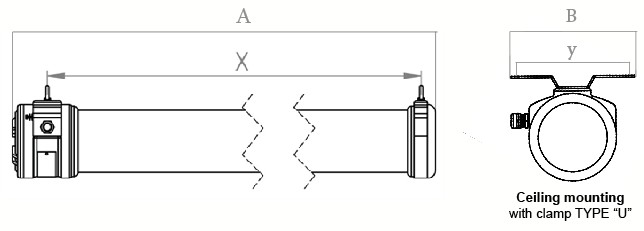

DIMENSIONS
| Order Code | Product Code | Power [W] | Lumen | Voltage | A [mm] | B [mm] | B [mm] | X [mm] | Y [mm] | Weight [kg] | Box [cm] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 101109 | ZNF.22W.S | 22W | ~2650 | 220–240 VAC | 720 | 210 | 142 | 186 | 5,5 | 75×19×19 | |
| 101110 | ZNF.22W.S.EM | 22W | ~2650 | 220–240 VAC | 720 | 210 | 142 | 186 | 5,7 | 75×19×19 | |
| 101111 | ZNF.44W.S | 44W | ~5740 | 220–240 VAC | 1320 | 210 | 142 | 186 | 7,70 | 135×19×19 | |
| 101112 | ZNF.44W.S.EM | 44W | ~5740 | 220–240 VAC | 1320 | 210 | 142 | 186 | 7,90 | 135×19×19 | |
| 101113 | ZNF.66W.S | 66W | ~8400 | 220–240 VAC | 1320 | 210 | 142 | 186 | 7,70 | 135×19×19 | |
| 101114 | ZNF.66W.S.EM | 66W | ~8400 | 220–240 VAC | 1320 | 210 | 142 | 186 | 7,90 | 135×19×19 |
